Set Screw DIN913 DIN914 DIN915
Views：
1000
The company has advanced high-speed cold heading machine machinery and equipment and automatic mesh belt furnace heat treatment production line, mainly producing bolts, nuts, washers, fully threaded studs, anchors, screws and DIN, BSW, ANIS, MS.Our factory also provides OEM, so we can provide you with the best quality and preferential prices.
Categories：
RELATED PRODUCTS
Product introduction
Title：Set Screw DIN913 DIN914 DIN915
Size：M5-M50
Length：20mm-500mm
GRADE：4.8/8.8/10.9/12.9
Material：carbon steel/stainless steel
Surface treatment：natural color/black/galvanized/hot-dip galvanized/Dacromet/Teflon, etc
Standard：DIN/ISO/ANSI/BS/AS/GOST/EN
Packaging：bags/cardboard boxes/wooden pallets/customer needs

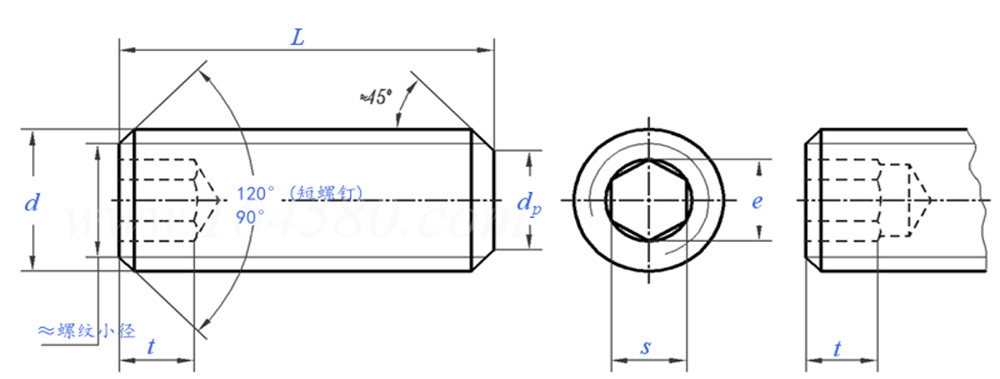

| Thread Specification | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | ||||
| d | |||||||||||||||
| P | pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | |||
| dp | max | 3.5 | 4 | 5.5 | 7 | 8.5 | 10 | 12 | 13 | 15 | 17 | 18 | |||
| min | 3.2 | 3.7 | 5.2 | 6.64 | 8.14 | 9.64 | 11.57 | 12.57 | 14.57 | 16.57 | 17.57 | ||||
| e | min | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 6.86 | 9.15 | 11.43 | 11.43 | 13.72 | 13.72 | |||
| s | nominal | 2.5 | 3 | 4 | 5 | 6 | 6 | 8 | 10 | 10 | 12 | 12 | |||
| max | 2.56 | 3.08 | 4.095 | 5.095 | 6.095 | 6.095 | 8.115 | 10.115 | 10.115 | 12.142 | 12.142 | ||||
| min | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 6.02 | 8.025 | 10.025 | 10.025 | 12.032 | 12.032 | ||||
| t | min | short screw | 2 | 2 | 3 | 4 | 4.8 | 5.6 | 6.4 | 7.2 | 8 | 9 | 10 | ||
| long screw | 3 | 3.5 | 5 | 6 | 8 | 9 | 10 | 11 | 12 | 13.5 | 15 | ||||
Set screws are small but essential components with specific functions. These screws are typically used to secure an object in place by pressing against a shaft or other mating surface.
They are known for their simplicity and effectiveness. The design often features a pointed or flat end that provides a secure grip.
Set screws are commonly found in machinery, equipment, and various mechanical assemblies. They help to prevent movement or rotation of parts.
Their small size allows them to be used in tight spaces where other fastening methods might not be suitable. They offer a reliable way to maintain alignment and stability.
Made from durable materials, set screws can withstand the forces and stresses they encounter in different applications. They come in different sizes and thread types to match specific requirements.
The installation of set screws is relatively straightforward, usually using a wrench or other tool. Once tightened, they provide a firm hold.
Whether used in industrial settings, automotive applications, or DIY projects, set screws are an important fastening option. Their ability to secure components with precision and durability makes them a valuable choice. They contribute to the overall functionality and reliability of the assemblies they are a part of, ensuring smooth operation and long-term performance.
Company introduction
Handan Wangsheng Fastener Co., Ltd. was officially established in 2007 and islocated in Handan City, Hebei Province, China's largest fastener production base.The enterprise covers an area of over 7000 square meters, employs over 200 peopleand has more than 100 advanced production equipment in China. lt is a modernfastener manufacturing enterprise that integrates production and manufacturinge-commerce operation, and intelligent warehousing.
Honorary certificate
Production process
