Product introduction

Title：Eye Bolts DIN580

Size：M5-M50

Length：20mm-500mm

GRADE：4.8/8.8/10.9/12.9

Material：carbon steel/stainless steel

Surface treatment：natural color/black/galvanized/hot-dip galvanized/Dacromet/Teflon, etc

Standard：DIN/ISO/ANSI/BS/AS/GOST/EN

Packaging：bags/cardboard boxes/wooden pallets/customer needs

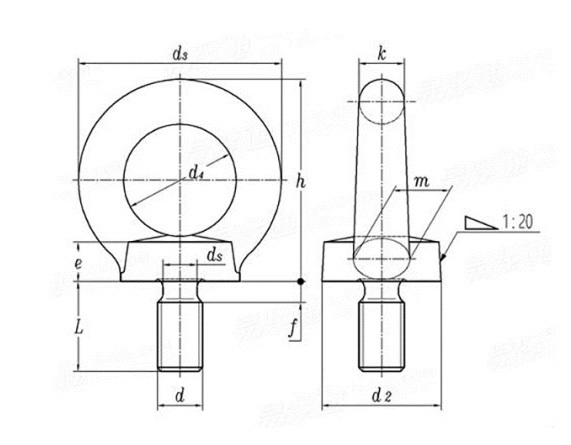

Thread specification		M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56	M64	M72×6	M80×6	M100×6
d		M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56	M64	M72×6	M80×6	M100×6
d 2	Nominal	20	25	30	35	40	50	65	75	85	100	110	120	150	170	190
	minimum	19.5	24.5	29.5	34.5	39.3	49.3	64.3	74.3	84.2	99.1	108.9	118.8	148.7	168.5	188.5
	maximum value	21.1	26.1	31.1	36.2	41.3	51.3	66.3	76.5	86.7	101.9	112.1	122.4	152.7	173	193
d 3	Nominal	36	45	54	63	72	90	108	126	144	166	184	206	260	296	330
	minimum	35.4	44.4	53.4	62.4	71.3	89.3	107.3	125.2	143.1	164.8	182.8	204.7	258.3	294.3	328.3
	maximum value	37.2	46.2	55.2	64.2	73.3	91.3	109.5	127.7	145.9	168.4	186.4	208.7	263.3	299.3	333.3
d 4	Nominal	20	25	30	35	40	50	60	70	80	90	100	110	140	160	180
	minimum	18.9	23.9	28.9	33.8	38.7	48.7	58.7	68.5	78.3	88.1	98.1	107.6	137.3	157.3	177
	maximum value	20.5	25.5	30.5	35.6	40.7	50.7	60.7	70.7	80.8	90.9	100.9	111.2	141.3	161.3	181.5
and	Nominal	6	8	10	12	14	18	twenty two	26	30	35	38	42	50	55	60
	minimum	5.5	7.5	9.5	11.5	13.4	17.4	21.4	25.3	29.3	34.1	37.1	40.9	48.8	53.8	58.8
	maximum value	7.1	9.1	11.1	13.1	15.2	19.2	23.2	27.3	31.5	36.9	39.9	44.1	52.4	57.4	62.4
f	maximum value	2.5	3	3.5	4	5	6	7	8	9	10	11	12	12	12	12
ds	max = nominal	6	7.7	9.4	13	16.4	19.6	25	30.3	35.6	41	48.3	55.7	63.7	71.7	91.7
ds	minimum	5.82	7.48	9.18	12.73	16.13	19.27	24.67	29.91	35.21	40.61	47.91	55.24	63.24	71.24	91.16
h	Nominal	36	45	53	62	71	90	109	128	147	168	187	208	260	298	330
	minimum	35.4	44.4	52.4	61.4	70.3	89.3	108.3	127.2	146.1	166.8	185.8	206.7	258.3	296.3	328.3
	maximum value	37.2	46.2	54.2	63.2	72.3	91.3	110.5	129.7	148.9	168.4	189.4	210.7	263.3	301.3	333.3
k	Nominal	8	10	12	14	16	20	twenty four	28	32	38	42	48	60	68	75
	minimum	7.5	9.5	11.5	13.5	15.4	19.4	23.4	27.3	31.3	37.1	41.1	46.9	58.8	66.8	73.8
	maximum value	9.1	11.1	13.1	15.1	17.2	21.2	25.2	29.3	33.5	39.9	43.9	50.1	62.4	70.4	77.4
L	Nominal	13	17	20.5	27	30	36	45	54	63	68	78	90	100	112	130
	minimum	12.71	16.71	20.15	26.65	29.58	35.5	44.5	53.5	62.5	67.5	77.4	89.4	99.4	111.3	129.2
	maximum value	13.29	17.29	20.85	27.35	30.42	36.5	45.5	54.5	63.5	68.5	78.6	90.6	100.6	112.7	130.7
m	Nominal	10	12	14	16	19	twenty four	28	32	38	46	50	58	72	80	88
	minimum	9.5	11.5	13.5	15.5	18.4	23.4	27.4	31.3	37.2	45.1	49.1	56.9	70.8	78.8	86.8
	maximum value	11.1	13.1	15.1	17.1	20.2	25.2	29.2	33.3	39.5	47.9	51.9	60.1	74.4	82.4	90.4
Single weight (steel)≈kg		0.06	0.11	0.18	0.28	0.45	0.74	1.66	2.65	4.03	6.38	8.8	12.4	23.3	34.2	49.1

Eye Bolts DIN580 are highly specialized fasteners with distinct characteristics. These bolts feature a circular eye at one end, which gives them unique functionality.

The DIN580 specification ensures consistent quality and dimensions. They are made from durable materials to provide strength and reliability.

The eye of the Eye Bolts DIN580 allows for the attachment of various items, such as ropes, cables, or chains. This makes them ideal for applications where suspension or lifting is involved.

They are commonly used in industries like construction, rigging, and marine. Their ability to securely hold and support loads is crucial.

The design of the eye provides a stable connection point, minimizing the risk of slippage or failure. These bolts can handle significant tensile forces.

Installation of Eye Bolts DIN580 is relatively straightforward, and they offer a secure fastening solution. Their distinct appearance also makes them easy to identify and work with.

Whether used for hoisting equipment, securing loads, or create anchor points, Eye Bolts DIN580 play a vital role. Their durability and functionality make them a preferred choice in many heavy-duty applications. The combination of their specialized design and reliable performance makes them an essential component in various industries, ensuring safety and efficiency in different operations.
