Spring Washer DIN127
Views：
1000
The company has advanced high-speed cold heading machine machinery and equipment and automatic mesh belt furnace heat treatment production line, mainly producing bolts, nuts, washers, fully threaded studs, anchors, screws and DIN, BSW, ANIS, MS.Our factory also provides OEM, so we can provide you with the best quality and preferential prices.
Categories：
RELATED PRODUCTS
Product introduction
Title：Spring Washer DIN127
Size：M5-M50
Length：20mm-500mm
GRADE：4.8/8.8/10.9/12.9
Material：carbon steel/stainless steel
Surface treatment：natural color/black/galvanized/hot-dip galvanized/Dacromet/Teflon, etc
Standard：DIN/ISO/ANSI/BS/AS/GOST/EN
Packaging：bags/cardboard boxes/wooden pallets/customer needs

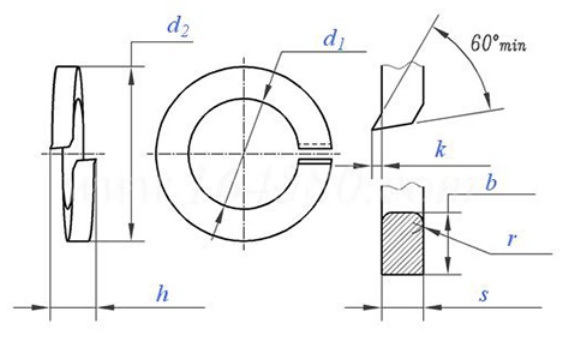

| Specification | Φ3 | Φ4 | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | Φ14 | Φ16 | Φ18 | ||
| d 1 | minimum | 3.1 | 4.1 | 5.1 | 6.1 | 8.1 | 10.2 | 12.2 | 14.2 | 16.2 | 18.2 | |
| maximum value | 3.3 | 4.4 | 5.4 | 6.5 | 8.5 | 10.7 | 12.7 | 14.7 | 17 | 19 | ||
| d 2 | maximum value | 6.2 | 7.6 | 9.2 | 11.8 | 14.8 | 18.1 | 21.1 | 24.1 | 27.4 | 29.4 | |
| b | Nominal | 1.3 | 1.5 | 1.8 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5 | |
| maximum value | 1.4 | 1.6 | 1.9 | 2.65 | 3.15 | 3.7 | 4.2 | 4.7 | 5.2 | 5.2 | ||
| minimum | 1.2 | 1.4 | 1.7 | 2.35 | 2.85 | 3.3 | 3.8 | 4.3 | 4.8 | 4.8 | ||
| s | Nominal | 0.8 | 0.9 | 1.2 | 1.6 | 2 | 2.2 | 2.5 | 3 | 3.5 | 3.5 | |
| maximum value | 0.9 | 1 | 1.3 | 1.7 | 2.1 | 2.35 | 2.65 | 3.15 | 3.7 | 3.7 | ||
| minimum | 0.7 | 0.8 | 1.1 | 1.5 | 1.9 | 2.05 | 2.35 | 2.85 | 3.3 | 3.3 | ||
| h | minimum | 1.9 | 2.1 | 2.7 | 3.6 | 4.6 | 5 | 5.8 | 6.8 | 7.8 | 7.8 | |
| maximum value | 2.1 | 2.5 | 3.2 | 4.2 | 5.4 | 5.9 | 6.8 | 8 | 9.2 | 9.2 | ||
| k | 0.15 | 0.15 | 0.15 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.4 | ||
| r | 0.2 | 0.2 | 0.2 | 0.3 | 0.5 | 0.5 | 1 | 1 | 1 | 1 | ||
| Thousand pieces (steel)≈kg | 0.11 | 0.18 | 0.36 | 0.83 | 1.6 | 2.53 | 3.82 | 6.01 | 8.91 | 9.73 | ||
| Applicable thread | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | ||
| Specification | Φ20 | Φ22 | Φ24 | Φ27 | Φ30 | Φ36 | Φ39 | Φ42 | Φ45 | Φ48 | ||
| d 1 | minimum | 20.2 | 22.5 | 24.5 | 27.5 | 30.5 | 36.5 | 39.5 | 42.5 | 45.5 | 49 | |
| maximum value | 21.2 | 23.5 | 25.5 | 28.5 | 31.7 | 37.7 | 40.7 | 43.7 | 46.7 | 50.5 | ||
| d 2 | maximum value | 33.6 | 35.9 | 40 | 43 | 48.2 | 58.2 | 61.2 | 68.2 | 71.2 | 75 | |
| b | Nominal | 6 | 6 | 7 | 7 | 8 | 10 | 10 | 12 | 12 | 12 | |
| maximum value | 6.2 | 6.2 | 7.25 | 7.25 | 8.25 | 10.25 | 10.25 | 12.25 | 12.25 | 12.25 | ||
| minimum | 5.8 | 5.8 | 6.75 | 6.75 | 7.75 | 9.75 | 9.75 | 11.75 | 11.75 | 11.75 | ||
| s | Nominal | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 7 | 7 | 7 | |
| maximum value | 4.2 | 4.2 | 5.2 | 5.2 | 6.2 | 6.2 | 6.2 | 7.25 | 7.25 | 7.25 | ||
| minimum | 3.8 | 3.8 | 4.8 | 4.8 | 5.8 | 5.8 | 5.8 | 6.75 | 6.75 | 6.75 | ||
| h | minimum | 8.8 | 8.8 | 11 | 11 | 13.6 | 13.6 | 13.6 | 15.6 | 15.6 | 15.6 | |
| maximum value | 10.4 | 10.4 | 13 | 13 | 16.1 | 16.1 | 16.1 | 18.4 | 18.4 | 18.4 | ||
| k | 0.4 | 0.4 | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ||
| r | 1 | 1 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 2 | 2 | 2 | ||
| Thousand pieces (steel)≈kg | 15.2 | 16.5 | 26.2 | 28.7 | 44.3 | 67.3 | 71.7 | 111 | 117 | 123 | ||
| Applicable thread | 20 | 22 | 24 | 27 | 30 | 36 | 39 | 42 | 45 | 48 | ||
Company introduction
Handan Wangsheng Fastener Co., Ltd. was officially established in 2007 and islocated in Handan City, Hebei Province, China's largest fastener production base.The enterprise covers an area of over 7000 square meters, employs over 200 peopleand has more than 100 advanced production equipment in China. lt is a modernfastener manufacturing enterprise that integrates production and manufacturinge-commerce operation, and intelligent warehousing.
