Welding nut DIN928
Views：
1000
The company has advanced high-speed cold heading machine machinery and equipment and automatic mesh belt furnace heat treatment production line, mainly producing bolts, nuts, washers, fully threaded studs, anchors, screws and DIN, BSW, ANIS, MS.Our factory also provides OEM, so we can provide you with the best quality and preferential prices.
Categories：
RELATED PRODUCTS
Product introduction
Title：Welding nut DIN928
Size：M5-M50
GRADE：4.8/8.8/10.9/12.9
Material：carbon steel/stainless steel
Surface treatment：natural color/black/galvanized/hot-dip galvanized/Dacromet/Teflon, etc
Standard：DIN/ISO/ANSI/BS/AS/GOST/EN
Packaging：bags/cardboard boxes/wooden pallets/customer needs

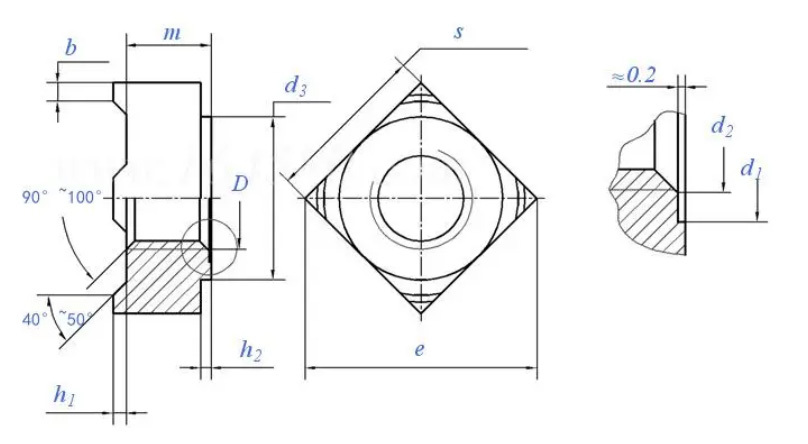

| Thread size | M4 | M5 | M6 | M8 | M10 | 7/16 UNF-2B ① |
7/16 UNF-2B ① |
M12 | M14 | M16 | ||
| D | ||||||||||||
| P | coarse teeth | 0.7 | 0.8 | 1 | 1.25 | 1.5 | / | / | 1.75 | 2 | 2 | |
| fine teeth | / | / | / | 1 | 1.25 | / | / | 1.25 | 1.5 | 1.5 | ||
| fine teeth | / | / | / | / | 1 | 20 | 20 | 1.5 | - | - | ||
| b | Nominal | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 1.8 | 2 | 2 | 2.5 | 2.5 | |
| maximum value | 0.95 | 1.15 | 1.25 | 1.65 | 2 | 2 | 2.2 | 2.2 | 2.7 | 2.7 | ||
| minimum | 0.65 | 0.85 | 1.05 | 1.35 | 1.6 | 1.6 | 1.8 | 1.8 | 2.3 | 2.3 | ||
| d1 | min=nominal | 5 | 6 | 7.5 | 10 | 12.5 | 12.5 | 13.5 | 13.5 | 16.8 | 18.8 | |
| maximum value | 5.18 | 6.18 | 7.72 | 10.22 | 12.77 | 12.77 | 13.77 | 13.77 | 17.07 | 19.13 | ||
| d2 | maximum value | 4.2 | 5.25 | 6.3 | 8.4 | 10.5 | 11.7 | 11.7 | 12.6 | 14.7 | 16.8 | |
| d3 | minimum | 6.4 | 8.2 | 9.1 | 12.8 | 15.6 | 15.6 | 17.4 | 17.4 | 20.4 | 22.4 | |
| e | minimum | 9 | 12 | 13 | 18 | 22 | 22 | 25 | 25 | 28 | 32 | |
| h1 | Nominal | 0.6 | 0.8 | 0.8 | 1 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | |
| maximum value | 0.7 | 0.9 | 0.9 | 1.1 | 1.3 | 1.3 | 1.5 | 1.5 | 1.5 | 1.7 | ||
| minimum | 0.5 | 0.7 | 0.7 | 0.9 | 1.1 | 1.1 | 1.3 | 1.3 | 1.3 | 1.5 | ||
| h2 | minimum | 0.4 | 0.6 | 0.7 | 1.1 | 1.25 | 1.25 | 1.75 | 1.75 | 1.75 | 2 | |
| maximum value | 1.3 | 1.5 | 1.8 | 2 | 2.2 | 2.2 | 3 | 3 | 3.2 | 4 | ||
| m | max = nominal | 3.5 | 4.2 | 5 | 6.5 | 8 | 9 | 9 | 9.5 | 11.4 | 13 | |
| minimum | 3.2 | 3.9 | 4.7 | 6.14 | 7.64 | 8.64 | 8.64 | 9.14 | 10.97 | 12.57 | ||
| s | max = nominal | 7 | 9 | 10 | 14 | 17 | 17 | 19 | 19 | 22 | 24 | |
| minimum | 6.64 | 8.64 | 9.64 | 13.57 | 16.57 | 16.57 | 18.48 | 18.48 | 21.48 | 23.48 | ||
| 1000 pieces weight kg | 0.81 | 1.7 | 2.4 | 6.5 | 11.3 | 12.5 | 16.5 | 16.6 | 26.7 | 35.8 | ||
| ① Inch: 7/16-20 UNF-2B [ASME B 1.1] | ||||||||||||
Welding nut DIN928 is a specialized fastening element with unique features and applications. It is designed specifically for welding onto various surfaces.
This type of nut conforms to the DIN928 standard, ensuring consistent quality and dimensions. It is typically made of a durable material that can withstand the welding process and subsequent usage.
The main advantage of a Welding nut DIN928 is its ability to provide a strong and secure connection. By welding it in place, it creates a reliable anchor point for other components to be attached.
It is commonly used in industries such as automotive, construction, and manufacturing. It is suitable for applications where a permanent and stable fastening is required.
The design of the Welding nut DIN928 allows for easy alignment and welding. Once welded, it offers a threaded hole for screws or bolts to be inserted and tightened.
This nut provides excellent mechanical strength and resistance to vibrations and loads. It ensures the integrity of the assembly over time.
Installation is relatively straightforward, but it requires proper welding techniques to ensure a strong bond. Quality control is crucial to ensure the welded nut functions properly.
In summary, Welding nut DIN928 is a valuable fastening solution for applications where welding is the preferred method of attachment. Its durability, strength, and conforming to the DIN928 standard make it a reliable choice for creating secure and long-lasting connections in various industrial settings.
