ISO7380 Allen pan head screw
Views：
1000
The company has advanced high-speed cold heading machine machinery and equipment and automatic mesh belt furnace heat treatment production line, mainly producing bolts, nuts, washers, fully threaded studs, anchors, screws and DIN, BSW, ANIS, MS.Our factory also provides OEM, so we can provide you with the best quality and preferential prices.
Categories：
RELATED PRODUCTS
Product introduction
Title：ISO7380 Allen pan head screw
Size：M5-M50
Length：20mm-500mm
GRADE：4.8/8.8/10.9/12.9
Material：carbon steel/stainless steel
Surface treatment：natural color/black/galvanized/hot-dip galvanized/Dacromet/Teflon, etc
Standard：DIN/ISO/ANSI/BS/AS/GOST/EN
Packaging：bags/cardboard boxes/wooden pallets/customer needs

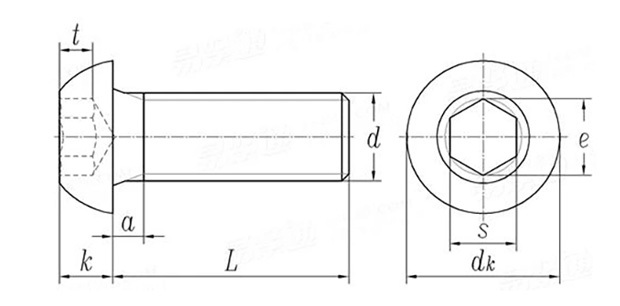

| Thread specification | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | |
| d | |||||||||
| P | pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 |
| a | maximum value | 1 | 1.4 | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 |
| minimum | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | |
| dk | maximum value | 5.7 | 7.6 | 9.5 | 10.5 | 14 | 17.5 | 21 | 28 |
| minimum | 5.4 | 7.24 | 9.14 | 10.07 | 13.57 | 17.07 | 20.48 | 27.48 | |
| e ① | minimum | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 |
| k | maximum value | 1.65 | 2.2 | 2.75 | 3.3 | 4.4 | 5.5 | 6.6 | 8.8 |
| minimum | 1.4 | 1.95 | 2.5 | 3 | 4.1 | 5.2 | 6.24 | 8.44 | |
| s | Nominal | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
| maximum value | 2.045 | 2.56 | 3.071 | 4.084 | 5.084 | 6.095 | 8.115 | 10.115 | |
| minimum | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | |
| t | minimum | 1.04 | 1.3 | 1.56 | 2.08 | 2.6 | 3.12 | 4.16 | 5.2 |
| Minimum tensile load (N) | Level 12.9 | 4910 | 8506 | 13800 | 19600 | 35700 | 56600 | 82400 | 154000 |
The ISO7380 Allen pan head screw is a high-quality fastening component. It features a pan head design that provides a smooth and aesthetically pleasing appearance. The Allen drive offers a secure and convenient way to install and tighten the screw.
This screw is manufactured to meet the strict standards of ISO7380, ensuring its durability and reliability. It is made from quality materials that can withstand various environmental conditions and mechanical stresses.
The Allen pan head screw is widely used in many industries, such as machinery, automotive, and electronics. Its precise dimensions and threading ensure a tight and stable fit. It is suitable for a variety of applications where a reliable fastening solution is required.
With its excellent performance and easy installation, the ISO7380 Allen pan head screw is a preferred choice for professionals and DIY enthusiasts alike. It helps to ensure the integrity and stability of assemblies, making it an essential component in many projects. Whether for small-scale repairs or large-scale manufacturing, this screw plays a crucial role in providing a secure connection.
Company introduction
Handan Wangsheng Fastener Co., Ltd. was officially established in 2007 and islocated in Handan City, Hebei Province, China's largest fastener production base.The enterprise covers an area of over 7000 square meters, employs over 200 peopleand has more than 100 advanced production equipment in China. lt is a modernfastener manufacturing enterprise that integrates production and manufacturinge-commerce operation, and intelligent warehousing.
Honorary certificate
Production process
