Flange Nut DIN6923
Views：
1000
The company has advanced high-speed cold heading machine machinery and equipment and automatic mesh belt furnace heat treatment production line, mainly producing bolts, nuts, washers, fully threaded studs, anchors, screws and DIN, BSW, ANIS, MS.Our factory also provides OEM, so we can provide you with the best quality and preferential prices.
Categories：
RELATED PRODUCTS
Product introduction
Title：Flange Nut DIN6923
Size：M5-M50
GRADE：4.8/8.8/10.9/12.9
Material：carbon steel/stainless steel
Surface treatment：natural color/black/galvanized/hot-dip galvanized/Dacromet/Teflon, etc
Standard：DIN/ISO/ANSI/BS/AS/GOST/EN
Packaging：bags/cardboard boxes/wooden pallets/customer needs

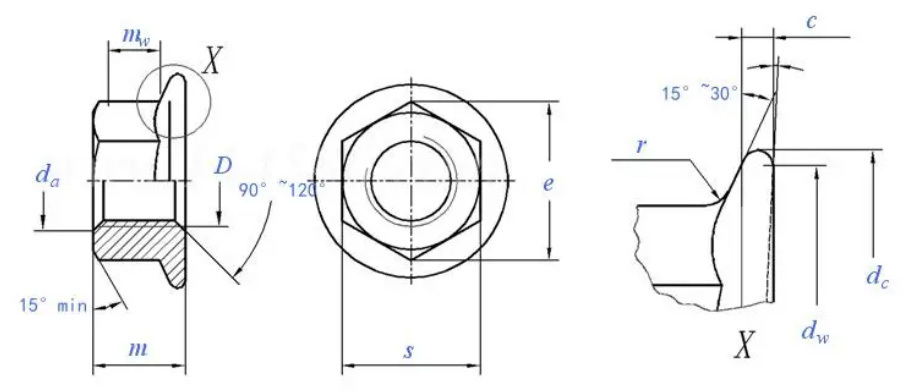

| Thread size | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |||
| D | |||||||||||
| P | pitch | coarse teeth | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
| fine teeth 1 | / | / | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | |||
| c | minimum | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | ||
| da | minimum | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | ||
| maximum value | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | |||
| dc | maximum value | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 | ||
| dw | minimum | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | ||
| e | minimum | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 | ||
| m | maximum value | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | ||
| minimum | 4.7 | 5.7 | 7.6 | 9.6 | 11.6 | 13.3 | 15.3 | 18.9 | |||
| mw | minimum | 2.2 | 3.1 | 4.5 | 5.5 | 6.7 | 7.8 | 9 | 11.1 | ||
| s | max = nominal | 8 | 10 | 13 | 15 | 18 | 21 | 23 | 30 | ||
| minimum | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.67 | |||
| r | maximum value | 0.3 | 0.36 | 0.48 | 0.6 | 0.72 | 0.88 | 0.96 | 1.2 | ||
Flange Nut DIN6923 is a distinctive type of nut with specific qualities and applications. It features a flange at the base, which provides additional support and stability.
The DIN6923 specification ensures consistent dimensions and high-quality performance. These nuts are typically made from durable materials to withstand various loads and conditions.
The flange design offers several benefits. It distributes the load more evenly over a larger area, reducing the stress on the fastened components. It also helps to prevent the nut from sinking into soft materials.
Flange Nut DIN6923 is commonly used in industries such as automotive, mechanical engineering, and construction. It is suitable for applications where a secure and stable fastening is crucial.
These nuts can be easily installed and tightened using appropriate tools. Their design allows for a firm grip and reliable connection.
They offer good resistance to vibration and loosening, ensuring the integrity of the assembly over time. The flange also adds an aesthetic touch in some cases.
Whether used in assembling machinery, fastening structural elements, or in automotive assemblies, Flange Nut DIN6923 is a trusted choice. Its combination of functionality, durability, and stability makes it an important component in many mechanical and construction projects. It provides a solid and dependable fastening solution for a wide range of applications.
Company introduction
Handan Wangsheng Fastener Co., Ltd. was officially established in 2007 and islocated in Handan City, Hebei Province, China's largest fastener production base.The enterprise covers an area of over 7000 square meters, employs over 200 peopleand has more than 100 advanced production equipment in China. lt is a modernfastener manufacturing enterprise that integrates production and manufacturinge-commerce operation, and intelligent warehousing.
