Allen Bolts DIN912
Views：
1000
The company has advanced high-speed cold heading machine machinery and equipment and automatic mesh belt furnace heat treatment production line, mainly producing bolts, nuts, washers, fully threaded studs, anchors, screws and DIN, BSW, ANIS, MS.Our factory also provides OEM, so we can provide you with the best quality and preferential prices.
Categories：
RELATED PRODUCTS
Product introduction
Title：Allen Bolts DIN912
Size：M5-M50
Length：20mm-500mm
GRADE：4.8/8.8/10.9/12.9
Material：carbon steel/stainless steel
Surface treatment：natural color/black/galvanized/hot-dip galvanized/Dacromet/Teflon, etc
Standard：DIN/ISO/ANSI/BS/AS/GOST/EN
Packaging：bags/cardboard boxes/wooden pallets/customer needs

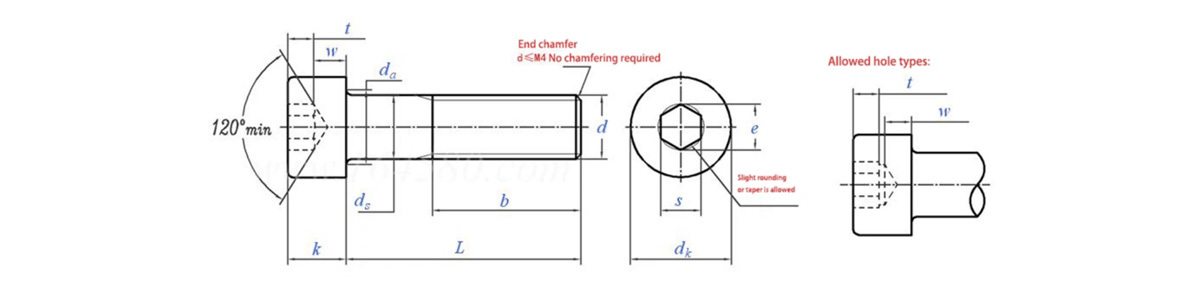

| Thread size | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | ||||
| d | ||||||||||||
| P | pitch | coarse teeth | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | ||
| fine teeth 1 | - | - | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | ||||
| fine teeth 2 | - | - | - | 1 | 1.5 | - | - | 2 | ||||
| dk | round head | maximum value | 8.5 | 10 | 13 | 16 | 18 | twenty one | twenty four | 27 | ||
| knurled head | maximum value | 8.72 | 10.22 | 13.27 | 16.27 | 18.27 | 21.33 | 24.33 | 27.33 | |||
| minimum | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | ||||
| d a | maximum value | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | |||
| ds | maximum value | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | |||
| minimum | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | ||||
| and | minimum | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 | 13.72 | 16 | 16 | |||
| k | maximum value | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | |||
| minimum | 4.82 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 | ||||
| s | Nominal | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 14 | |||
| minimum | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 12.032 | 14.032 | 14.032 | ||||
| maximum value | 4.095 | 5.14 | 6.14 | 8.175 | 10.175 | 12.212 | 14.212 | 14.212 | ||||
| t | minimum | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |||
| in | minimum | 1.9 | 2.3 | 3 | 4 | 4.8 | 5.8 | 6.8 | 7.8 | |||
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | ||||
| Thread length b | - | - | - | - | - | - | - | - | ||||
| Thread size | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | M42 | ||||
| d | ||||||||||||
| P | pitch | coarse teeth | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4.5 | ||
| fine teeth 1 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | ||||
| fine teeth 2 | 2 | 2 | - | - | - | - | - | - | ||||
| dk | round head | maximum value | 30 | 33 | 36 | 40 | 45 | 50 | 54 | 63 | ||
| knurled head | maximum value | 30.33 | 33.39 | 36.39 | 40.39 | 45.39 | 50.39 | 54.46 | 63.46 | |||
| minimum | 29.67 | 32.61 | 35.61 | 39.61 | 44.61 | 49.61 | 53.54 | 62.54 | ||||
| d a | maximum value | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 45.5 | |||
| ds | maximum value | 20 | twenty two | twenty four | 27 | 30 | 33 | 36 | 42 | |||
| minimum | 19.67 | 21.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 | 41.61 | ||||
| and | minimum | 19.44 | 19.44 | 21.73 | 21.73 | 25.15 | 27.43 | 30.85 | 36.57 | |||
| k | maximum value | 20 | twenty two | twenty four | 27 | 30 | 33 | 36 | 42 | |||
| minimum | 19.48 | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 41.38 | ||||
| s | Nominal | 17 | 17 | 19 | 19 | twenty two | twenty four | 27 | 32 | |||
| minimum | 17.05 | 17.05 | 19.065 | 19.065 | 22.065 | 24.065 | 27.065 | 32.08 | ||||
| maximum value | 17.23 | 17.23 | 19.275 | 19.275 | 22.275 | 24.275 | 27.275 | 32.33 | ||||
| t | minimum | 10 | 11 | 12 | 13.5 | 15.5 | 18 | 19 | twenty four | |||
| in | minimum | 8.6 | 9.4 | 10.4 | 11.9 | 13.1 | 13.5 | 15.3 | 16.3 | |||
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | ||||
| thread length b | - | - | - | - | - | - | - | - | ||||
Allen Bolts DIN912 are precision-engineered fasteners with distinct characteristics. These bolts have an Allen socket drive, which offers a convenient and efficient way to tighten and loosen them.
The DIN912 specification ensures high-quality and consistent performance. They are manufactured to exacting standards, making them reliable and durable.
The Allen Bolts DIN912 are suitable for a wide range of applications, from machinery and equipment to automotive and industrial settings. Their strength and stability make them ideal for securing components firmly.
The design of these bolts allows for a flush finish when installed, giving a neat and tidy appearance. They provide a secure connection that can withstand vibrations and loads.
The Allen socket provides a secure grip, minimizing the risk of slippage during tightening. This ensures that the bolts are fastened tightly and accurately.
In addition to their functional benefits, Allen Bolts DIN912 also offer aesthetic appeal. They contribute to the overall look and quality of the assemblies they are used in. Whether for critical applications or general fastening needs, these bolts are a trusted choice, offering both performance and reliability.
Company introduction
Handan Wangsheng Fastener Co., Ltd. was officially established in 2007 and islocated in Handan City, Hebei Province, China's largest fastener production base.The enterprise covers an area of over 7000 square meters, employs over 200 peopleand has more than 100 advanced production equipment in China. lt is a modernfastener manufacturing enterprise that integrates production and manufacturinge-commerce operation, and intelligent warehousing.
Honorary certificate
Production process
