Stud Bolt DIN938
Views：
1000
The company has advanced high-speed cold heading machine machinery and equipment and automatic mesh belt furnace heat treatment production line, mainly producing bolts, nuts, washers, fully threaded studs, anchors, screws and DIN, BSW, ANIS, MS.Our factory also provides OEM, so we can provide you with the best quality and preferential prices.
Categories：
RELATED PRODUCTS
Product introduction
Title：Stud Bolt DIN938
Size：M5-M50
Length：20mm-500mm
GRADE：4.8/8.8/10.9/12.9
Material：carbon steel/stainless steel
Surface treatment：natural color/black/galvanized/hot-dip galvanized/Dacromet/Teflon, etc
Standard：DIN/ISO/ANSI/BS/AS/GOST/EN
Packaging：bags/cardboard boxes/wooden pallets/customer needs

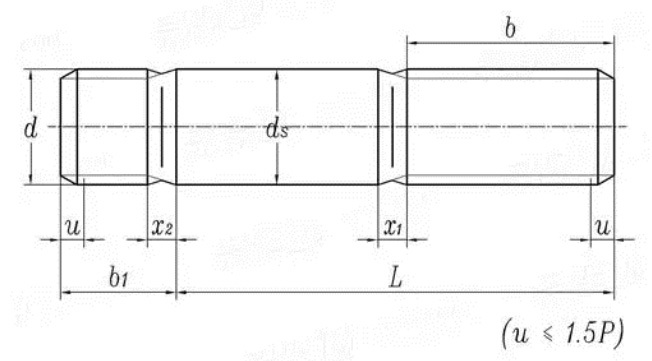

| Thread specification | M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | ||||
| d | |||||||||||||||
| P | pitch | coarse teeth | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | ||
| fine teeth 1 | - | - | - | - | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | ||||
| fine teeth 2 | - | - | - | - | - | - | 1.5 | - | - | - | - | ||||
| b 1 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | ||||
| b | L≤125 | 12 | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | |||
| 125＜L≤200 | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | ||||
| L＞200 | - | - | - | - | - | 45 | 49 | 53 | 57 | 61 | 65 | ||||
| x 1 | 1.25 | 1.75 | 2 | 2.5 | 3.2 | 3.8 | 4.3 | 5 | 5 | 6.3 | 6.3 | ||||
| x 2 | 0.7 | 0.9 | 1 | 1.25 | 1.6 | 1.9 | 2.2 | 2.5 | 2.5 | 3.2 | 3.2 | ||||
| Thread specification | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | ||||
| d | |||||||||||||||
| P | pitch | coarse teeth | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | ||
| fine teeth 1 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | ||||
| fine teeth 2 | - | - | - | - | - | - | - | - | - | - | - | ||||
| b 1 | 22 | 24 | 25 | 30 | 32 | 35 | 38 | 42 | 45 | 48 | 52 | ||||
| b | L≤125 | 50 | 54 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 110 | |||
| 125＜L≤200 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 | ||||
| L＞200 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 | ||||
| x 1 | 6.3 | 7.5 | 7.5 | 9 | 9 | 10 | 10 | 11 | 11 | 12.5 | 12.5 | ||||
| x 2 | 3.2 | 3.8 | 3.8 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6.3 | 6.3 | ||||
