Hex Head Wood Screws
Views：
1000
The company has advanced high-speed cold heading machine machinery and equipment and automatic mesh belt furnace heat treatment production line, mainly producing bolts, nuts, washers, fully threaded studs, anchors, screws and DIN, BSW, ANIS, MS.Our factory also provides OEM, so we can provide you with the best quality and preferential prices.
Categories：
Product introduction
Title：Hex Head Wood Screws
Size：M5-M50
Length：20mm-500mm
GRADE：4.8/8.8/10.9/12.9
Material：carbon steel/stainless steel
Surface treatment：natural color/black/galvanized/hot-dip galvanized/Dacromet/Teflon, etc
Standard：DIN/ISO/ANSI/BS/AS/GOST/EN
Packaging：bags/cardboard boxes/wooden pallets/customer needs

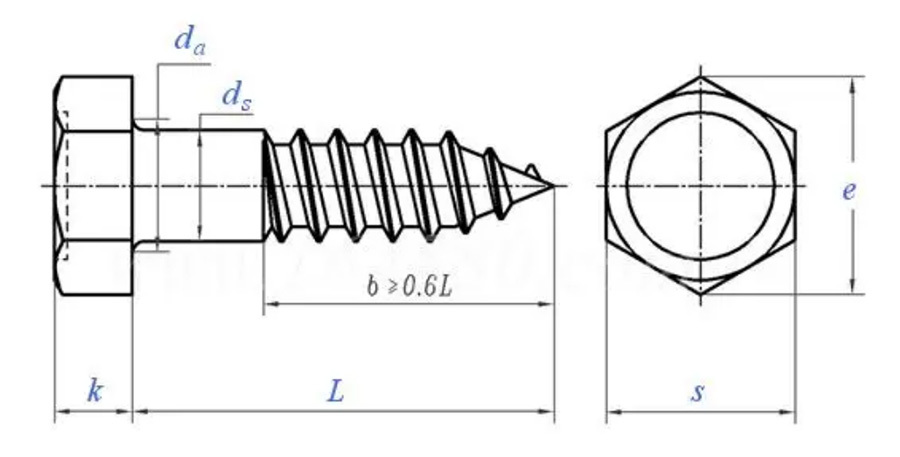

| Thread specification | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 | |
| d | ||||||||||
| ds | maximum value | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
| minimum | 3.52 | 4.52 | 5.52 | 6.42 | 7.42 | 9.42 | 11.3 | 15.3 | 19.3 | |
| d a | maximum value | 5 | 6 | 7.2 | 8.2 | 10.2 | 12.2 | 15.2 | 19.2 | 24.4 |
| k | Nominal | 2.8 | 3.5 | 4 | 5 | 5.5 | 7 | 8 | 10 | 13 |
| maximum value | 3.1 | 3.88 | 4.38 | 5.38 | 5.88 | 7.45 | 8.45 | 10.45 | 13.9 | |
| minimum | 2.5 | 3.13 | 3.63 | 4.63 | 5.13 | 6.55 | 7.55 | 9.55 | 12.1 | |
| s | max = nominal | 7 | 8 | 10 | 12 | 13 | 17 | 19 | 24 | 30 |
| minimum | 6.64 | 7.64 | 9.64 | 11.57 | 12.57 | 16.57 | 18.48 | 23.16 | 29.16 | |
| and | minimum | 7.5 | 8.63 | 10.89 | 13.07 | 14.2 | 18.72 | 20.88 | 26.17 | 32.95 |
| ①,Material: | ||||||||||
| a) Steel, St is selected by the manufacturer; | ||||||||||
| b) Stainless steel, Group: A2~A5 Property class: 20H, 25H Standard DIN EN ISO 3506-4; | ||||||||||
| c) Non-ferrous metals, CuZn=copper-zinc alloy Standard DIN EN 12166 | ||||||||||
Keywords：
Company introduction
Handan Wangsheng Fastener Co., Ltd. was officially established in 2007 and islocated in Handan City, Hebei Province, China's largest fastener production base.The enterprise covers an area of over 7000 square meters, employs over 200 peopleand has more than 100 advanced production equipment in China. lt is a modernfastener manufacturing enterprise that integrates production and manufacturinge-commerce operation, and intelligent warehousing.
Honorary certificate
Production process
