Carriage Bolts DIN603
Views：
1000
The company has advanced high-speed cold heading machine machinery and equipment and automatic mesh belt furnace heat treatment production line, mainly producing bolts, nuts, washers, fully threaded studs, anchors, screws and DIN, BSW, ANIS, MS.Our factory also provides OEM, so we can provide you with the best quality and preferential prices.
Categories：
RELATED PRODUCTS
Product introduction
Title：Carriage Bolts DIN603
Size：M5-M50
Length：20mm-500mm
GRADE：4.8/8.8/10.9/12.9
Material：carbon steel/stainless steel
Surface treatment：natural color/black/galvanized/hot-dip galvanized/Dacromet/Teflon, etc
Standard：DIN/ISO/ANSI/BS/AS/GOST/EN
Packaging：bags/cardboard boxes/wooden pallets/customer needs

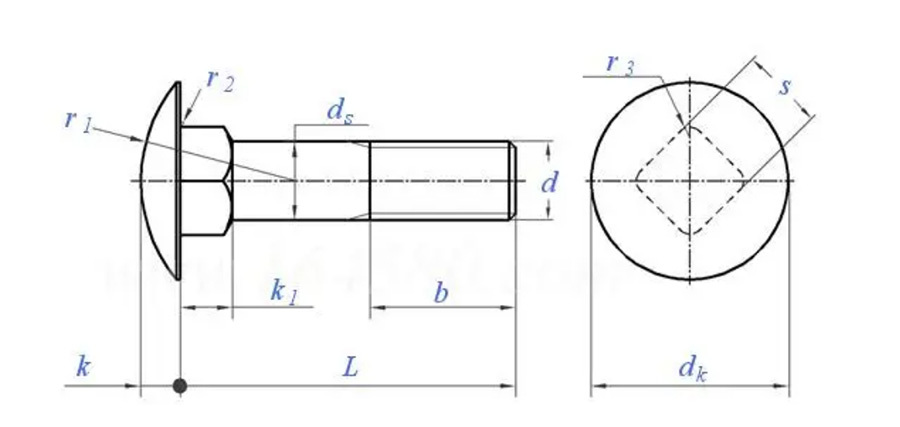

| Thread specification | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |
| d | ||||||||
| P | pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 |
| b | L≤125 | 16 | 18 | twenty two | 26 | 30 | 38 | 46 |
| 125＜L≤200 | twenty two | twenty four | 28 | 32 | 36 | 44 | 52 | |
| L>200 | - | - | 41 | 45 | 49 | 57 | 65 | |
| dk | maximum value | 13.55 | 16.55 | 20.65 | 24.65 | 30.65 | 38.8 | 46.8 |
| minimum | 12.45 | 15.45 | 19.35 | 23.35 | 29.35 | 37.2 | 45.2 | |
| ds | maximum value | 5 | 6 | 8 | 10 | 12 | 16 | 20 |
| minimum | 4.52 | 5.52 | 7.42 | 9.42 | 11.3 | 15.3 | 19.16 | |
| k 1 | maximum value | 4.1 | 4.6 | 5.6 | 6.6 | 8.75 | 12.9 | 15.9 |
| minimum | 2.9 | 3.4 | 4.4 | 5.4 | 7.25 | 11.1 | 14.1 | |
| k | maximum value | 3.3 | 3.88 | 4.88 | 5.38 | 6.95 | 8.95 | 11.05 |
| minimum | 2.7 | 3.12 | 4.12 | 4.62 | 6.05 | 8.05 | 9.95 | |
| r 1 | ≈ | 10.7 | 12.6 | 16 | 19.2 | 24.1 | 29.3 | 33.9 |
| r 2 | maximum value | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 |
| r 3 | maximum value | 0.75 | 0.9 | 1.2 | 1.5 | 1.8 | 2.4 | 3 |
| s | maximum value | 5.48 | 6.48 | 8.58 | 10.58 | 12.7 | 16.7 | 20.84 |
| minimum | 4.52 | 5.52 | 7.42 | 9.42 | 11.3 | 15.3 | 19.16 | |
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | |
| thread length b | - | - | - | - | - | - | - | |
Carriage Bolts DIN603 are specialized fasteners with distinct characteristics. These bolts have a smooth, rounded head and a square neck beneath.
The DIN603 specification ensures their uniformity and quality. They are engineered to meet specific standards for strength and performance.
Carriage Bolts DIN603 are widely used in various industries, especially in woodworking and construction. Their unique design makes them suitable for applications where a flush finish is desired on one side.
The smooth head sits neatly on the surface, while the square neck provides resistance against rotation. This helps to secure the fastened objects firmly.
They are typically made from durable materials like steel to ensure long-lasting use. These bolts can handle significant loads and stresses.
Their ease of installation and reliable fastening capabilities make them a preferred choice for many projects. Whether it's for assembling furniture or constructing structures, Carriage Bolts DIN603 play a crucial role.
The combination of their functional design and quality construction makes them an essential component in many applications. They offer stability and security, ensuring that the connected parts remain in place. With their specific features and reliable performance, Carriage Bolts DIN603 are a valuable addition to any toolkit or construction project.
Company introduction
Handan Wangsheng Fastener Co., Ltd. was officially established in 2007 and islocated in Handan City, Hebei Province, China's largest fastener production base.The enterprise covers an area of over 7000 square meters, employs over 200 peopleand has more than 100 advanced production equipment in China. lt is a modernfastener manufacturing enterprise that integrates production and manufacturinge-commerce operation, and intelligent warehousing.
Honorary certificate
Production process
